Fender Volume/Tone Year: Brand: Fender Model: Volume/Tone Class: Volume-Tone Owner: Jeff Hewitt Status: In Studio.

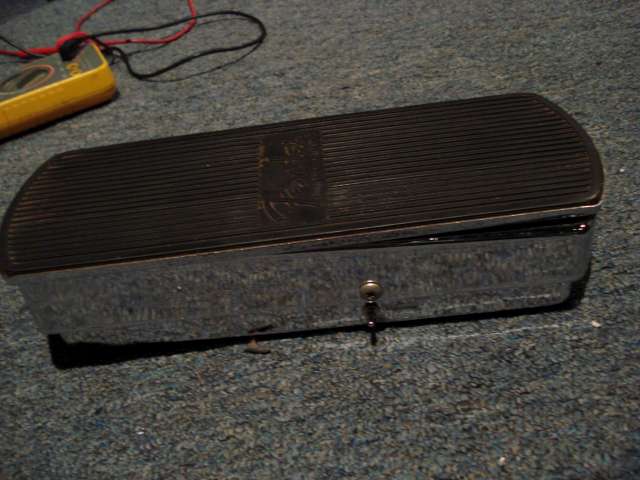

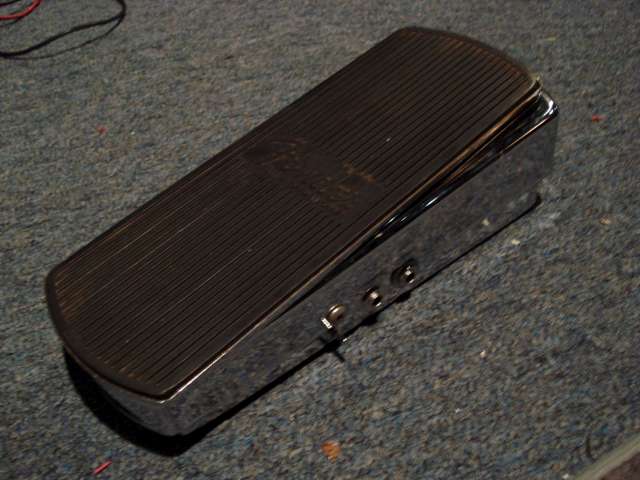

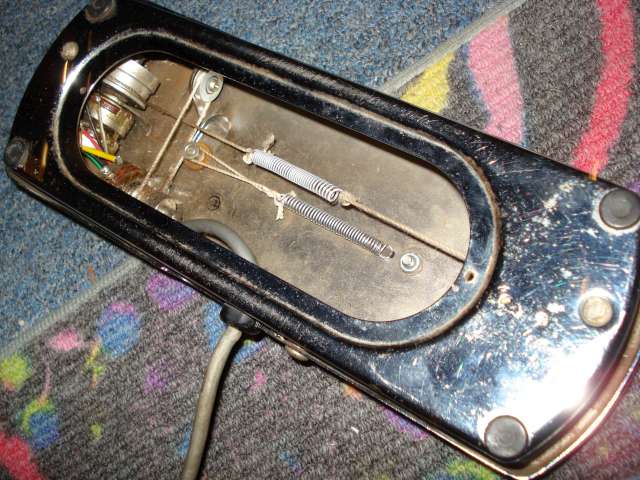

This is a fender model KB061, a volume tone pedal for the Contempo Organ. Construction wise it is the exact same as volume tone pedal for guitar, other than an extra pot on the volume.
The Contempo Organ uses an old Amphenol connector. The wiring is as follows:
---------------------------------------
Volume-A 1)Ground 2)pin1 3)pin5
Volume-B 1)Ground 2)pin2 3)pin4
Tone 1).05 cap to VOLB-3 2)Ground
---------------------------------------
The Standard Fender Volume/Tone pedal is wired as follows:
---------------------------------------

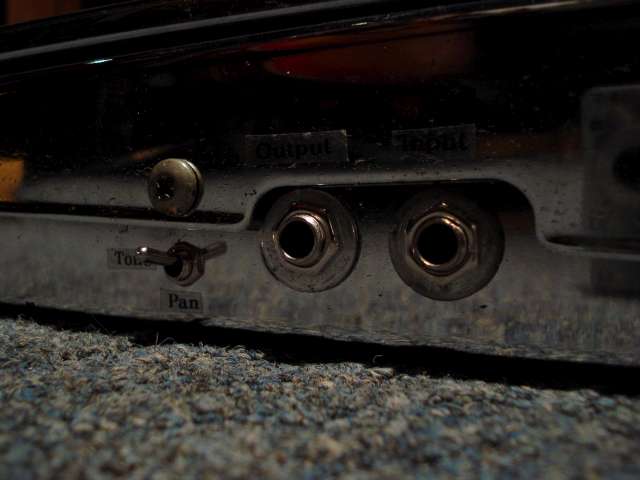

Volume 1) Ground 2) Output 3) Input
Tone 1) Ground 2) 0.02uf 150v Cap to Vol-3
---------------------------------------
|
|
|
|
|
|
|
